DLC List UFO LED High Bay Light 150w With 60 90 120 Degree Reflector 130lm / W
High bay lighting like warehouse, indoor and outdoor sports stadium, high mast application, tunnel and many more. Housing: Aluminum casting for good heat transfer.
Suitable for dry, damp and wet locations. Product is dimmable 0-10V, R, 10VPWM and min dimmable 10%. Mounting: Ceiling pendant and ceiling surface. Finished: Corrosion resistant.
Features

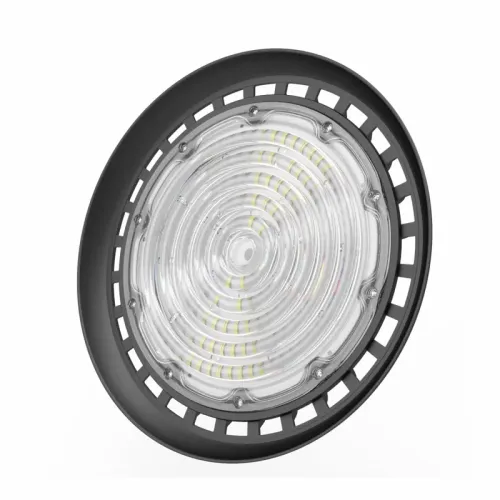

ufo led high bay light
Plug & play built-in smart control module for Bluetooth & Microwave sensor. Save SKU.
Luminous efficiency up to 180lm/W.
Unique central air-convection design. Greatly improve the heat dissipation efficiency.
Magnesium alloy housing. With the same heat dissipation effect, magnesium alloy weighs only 60% of aluminium
alloy.
Specifications

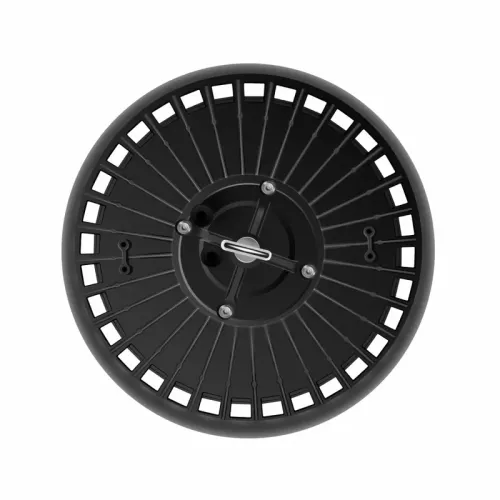

150w led high bay light
|
Item
|
Value
|
|
Color Temperature(CCT)
|
3000K / 4000K / 5000K / 5700K / 6500K
|
|
Lamp Luminous Efficiency(lm/w)
|
130lm/w
|
|
Color Rendering Index(Ra)
|
>80
|
|
Support Dimmer
|
Yes
|
|
Lighting solutions service
|
DIALux evo layout
|
|
Luminous Efficacy(lm/w)
|
130lm/w
|
|
Lifespan (hours)
|
50000h
|
|
Working Time (hours)
|
50000h
|
|
Input Voltage(V)
|
100-277V
|
|
Lamp Luminous Flux(lm)
|
19500lm
|
|
CRI (Ra>)
|
>80
|
|
Working Temperature(℃)
|
-30-50 ℃
|
|
Working Lifetime(Hour)
|
50000h
|
|
Lamp Body Material
|
Die Cast Aluminum
|
|
IP Rating
|
IP65
|
|
Certification
|
CE RoHS
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Unicornlite
|
|
Application
|
Warehouse
|
|
Light Source
|
LED
|
|
Warranty(Year)
|
5-Year
|
|
Product Name
|
150W Led High Bay Light Fixture
|
|
Wattage
|
150w
|
|
LED Chip
|
Phi-lips
|
|
LED Driver
|
Sosen
|
|
IP Grade
|
IP65
|
|
Shape
|
UFO shade
|
|
Installation
|
Suspended Mounting
|
|
Dimmable
|
1-10V
|
|
Luminous Efficiency
|
130lm/w
|
|
Options
|
PC lampshade
|
Details

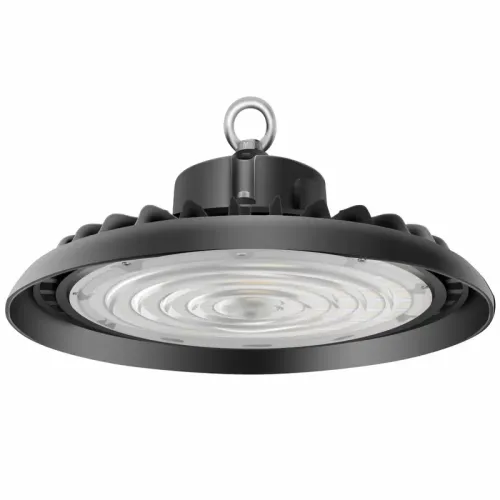

ufo high bay led lights
• Light source: Using COB LED chip with high quality, long lifetime and excellent luminous efficacy, high color rendering index Ra ≥ 80, natural light
• Structure: Lamp body made from anodized aluminum, high thermal conductivity
• Lamp shades made from cast aluminum, surface coating with silver heat resistant frame, good thermal scattering
• Optical system: Using anti-heat and UV aging optical scope
• Power source: Rated Voltage / Frequency: 220VAC/50-60Hz, switching mode power supply
• Lifetime: 25 000 ÷50 000 hours, 5 times longer than that of compact fluorescent lamps and Metal-halide lamp, saving maintenance cost
• Working temperature: -10ºC ÷45ºC
• Applied standard: TCVN 7722-1:2009/ IEC 60598-1:200
Economic efficiency:
• Replacing compact lamps and Metal-halide lamp
• Saving over 50% of electricity used compared to compact lamps and Metalhalide lamp
Applications
ufo high bay light Used in Suitable for large lighting space like: factories, storages, playgrounds, large precincts, etc.
Packaging
Packing Material:Neutral packing with strong corrugated paper cartons, in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
