Outdoor Waterproof Sport Stadium Foold Light Ip66 300w 400w 500w 600w 1000w LED High Mast Light

floodlight specially designed for outdoor sports fields, squares, and buildings. Outdoor Waterproof Sport Stadium Foold Light Ip66 300w 400w 500w 600w 1000w Led High Mast Light
Description
Description
Outdoor Waterproof Sport Stadium Foold Light Ip66 300w 400w 500w 600w 1000w Led High Mast Light

Product Description

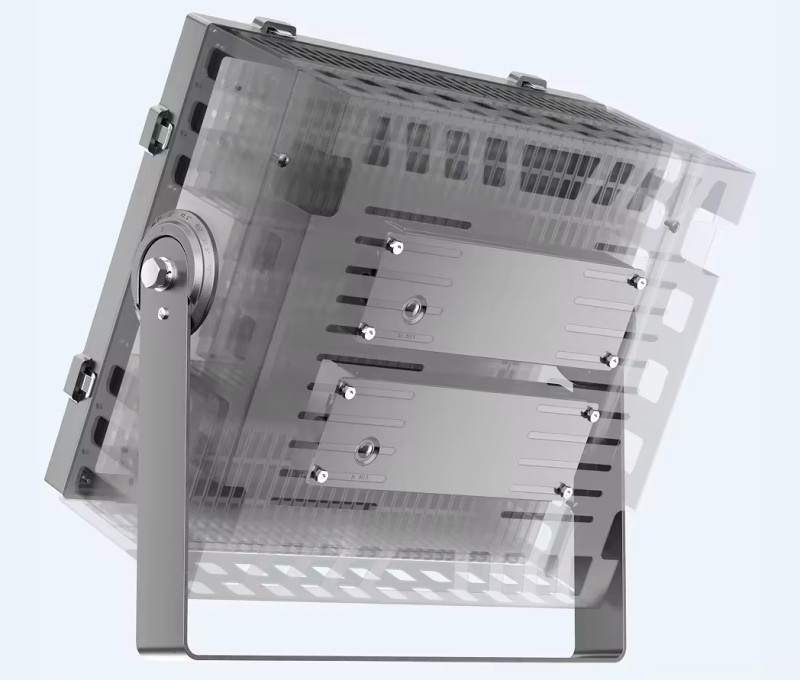

Led High Mast Light Optional power: 300W 400W 500W 600W 800W 1000W, lightweight design, efficient fin cooling system, a floodlight specially designed for outdoor sports fields, squares, and buildings.

Features

1.The bracket can be adjusted 360°.
2.Professional waterproof structure,multiple sealing treatment, protection grade IP65.
3.Optional with light eave.
4.Equipped with a thermal respirator.Preventing leakage due to hot expansion and cold contraction.
5.The whole lamp adopts the structure of lens+glass+buckle, which is more reliable waterproof.
6.Fin-type heat dissipation,high-purity aluminum stamping forming, air convection, rapid heat dissipation,larger light-emitting surface, high light efficiency.

Product Parameters

Model
XF-300W
XF-400W
XF-500W
XF-600W
XF-800W
XF-1000W
Size
396*376*163mm
396*376*163mm
514*376*163mm
514*376*163mm
576*478*163mm
576*478*163mm
Input Voltage
AC90-305V 50-60Hz
Luminous Flux
125-150lm/w
CCT
3000K/4000K/6500K
Light Source
3030/2835SMD
CRI
>70
Surge Protection
4-10KV
Beam Angle
10°/20°/30°/60°/90°
IP Grade
IP65
Ambient Temp
-30℃- 50℃
Dimmable
1- 10V/ DALI Optional
Power Factors
0.95


Detailed Photos

High Output LED's, up to 150lm/W
Power: 300-1000W
Meanwell Driver with Lumileds 3030 LEDs(Other configurations is optional)
Meanwell brand driver, TUV UL CE certificate, PF>0.96, THD<12
10°/30° / 60° / 90° beam angle for option
Durable tempered glass front
Environmentally friendly, no mercury, No UV, No IR
IP66, indoor & outdoor use
Quick to install and easy to use, secure and reliable
5 Year Warranty on the complete fixture (LED's, Driver, & Housing)
Certificate: CE, RoHS ETL

high mast lamp
high mast led
highmast lighting
led high mast light
led mast light

Dimensions

400w led high mast light

Applications

flood light high mast

Packaging & Shipping

high mast led flood light
high mast led flood light package

Our Advantages

high mast lamp factory
